Basic Info
Model NO.: SH954C
Usage: Farm Tractor
Drive Wheel: 4WD
Fuel: Gas / Diesel
Size: Large
Condition: New
Wheel Drive: 4WD
Operate Weight: 3900kg
Transport Package: in Container
Origin: Shangdong
Type: Wheel Tractor
Certification: ISO/TS16949
Emission Standard: Euro II
Service Life: 6-10 Years
Color: Red
Power: 95HP
Cab: with AC
Trademark: SH
Specification: ISO
HS Code: 87091990
Product Description

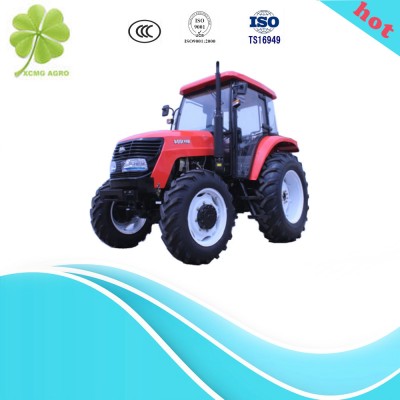

The SH Series wheeled tractors are for drylands job, they can attach many kinds of large farm machineries.
They are widely used in China's Xinjiang, Northeast farm land deep plowing, crop planting, cultivation, fertilization and forage mechanization and transportation of materials.
More suitable for supporting a complete multi-channel processes jobs with duplex farm machinery.
In addition, supporting the corresponding device, they can complete the transformation of farmland water conservancy construction, engineering machinery and many other jobs.
| Operate weight with Cab |
| 4000kg |
| Wheel driven and Steering |
| Four wheel driven with hydraulic steering |
| Hydraulic system |
| Dual hydraulic output |
| Fuel tank capacity |
| 126L |
| PTO |
| 8 spline , 38mm outside diameter 760 / 1000 R.P.M |
| ENGINE |
| Model YC4B115Z-T11 in-line , 4 cylinder , water cooled Turbocharged . |
| Rated speed : 2300 R.P.M , Gross HP 95 |
| Bore * stroke : 108 * 125 mm |
| Displacement : 4.58 L |
| Oil bath type air filter |
| Differential Lock |
| Improve the pass-ability |
| Transmission |
| Dual stage clutch by independent control |
| Transmission is variable speed controlled to maintain 760/1000 PTO speed |
| Ground Speed |
| Travel speed ( 16F+8R , creeper ) |
| High creep : 2.008-6.975 km/h normal : 10.04-34.873 km/h |
| Low creep : 0.463-1.608 km/h normal : 2.315-8.039 km/h |
| Brake |
| Static-pressure pedal control |
| Suspension |
| 4 x sets remote hydraulics |
| Three-point linkage on postposition |
| Dimension |
| ( L x H x G ) : 4290 x 2100 x 2810 mm |
| Wheelbase : 2195 mm |
| Wheel track ( Front / Rear ) : 1610 / 1620 mm |
| Minimum ground clearance : 379 mm |
| Roll over protection bar / cab / seatbelt / counterweight are optional |
| Air condition / luxury seat are optional |
| Tires |
| Front / Rear : 11.2-24 / 16.9-34 |
