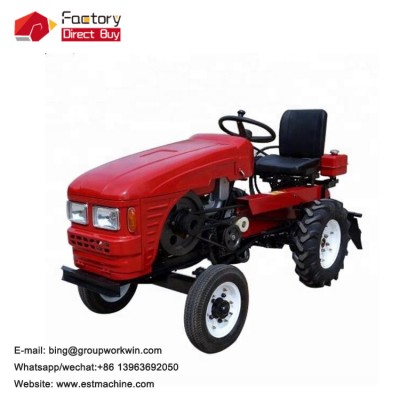

Cheap Power shift Engine farm tractor
1. YTO diesel engine: good reliability, large reserves of torque, low fuel consumption, high economic efficiency.
2. Double-function clutch: operate independently, high transmission capacity,comfortable operation.
3. Gearbox: 4 × (4+2) engaging sleeve, shuttle-type gearshift,16 forward gears and 8reverse gears, reasonable match between the gears.
4. Steering type: Full hydraulic front wheels steering: independent oil circuit for steering system, manipulating flexible, reliable, and save energy.
5. Hydrostatic disc-type brakes: a large braking torque, the braking effect is good;
6. High pressure type lifting device:reliable, easy maintenance, multi-hydraulic output can be optioned;
Technical Specification | ||||
No. | Item | Unit | Specification | |
1 | Model | / | WSL-554 | |
2 | Type | / | 4X4 (Four Wheel Drive) | |
3 | Overall Dimension ( L*W*H ) | mm | 3660*1600*2420 | |
4 | Wheel Base | mm | 1830 | |
5 | Tread (Front / Rear) Gauge | mm | 1300 / 1300-1400 | |
6 | Minimum Ground Clearance Distance | mm | 310 | |
7 | Minimum Working Quality | kg | 1625 | |
8 | Maximum Ballast Quality(Front/Rear) | kg | 120 / 100 | |
9 | Gear ( Forward / Reverse ) | / | 8F+4R | |
10 |
Engine | Model | / | Four cylinder, vertical, water cooled, four stroke diesel engines |
11 | Item No. | / | Y4105T | |
12 | Bore X Stroke | mm | 4-105X118 | |
13 | Rated HP | kw | 40.4 | |
14 | Rated Speed | r/min | 2300 | |
15 | Transmission System | Clutch Type | / | 10" dry double-action |
16 | Gearbox Type | / | 4X(2+1) | |
17 | Steering and Braking System | Steering System Type | / | Hydraulic Steering |
18 | Braking System Type | / | disc brake | |
19 | Running System | Tyre Type | / | 8.3-24/14.9-28 |
20 |
Working Device | Suspension System Type | / | Rear Three-Points Links |
21 | Suspension System Catagory | / | Catagory Ⅰ | |
22 | Hydraulic Output Device | / | Two Level | |
23 | The No. of PTO Shaft Splines | 6 Keys | ||
24 | The PTO Shaft Speed | r/min | 540/760 | |

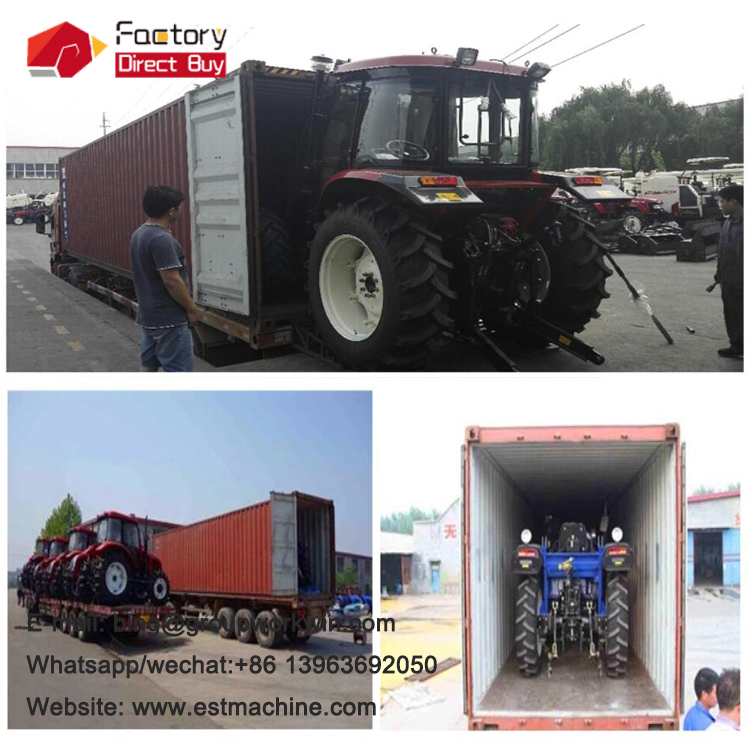

The normal package is 10mm wire and Triangle wood or steel. If container is too tigher,we will use pefilm for packing or pack it according to customers special request.
